Dc Motor, 3/4hp, 56c, 90v, 1750rpm, Tefc, Base Grease, Permanent Magnet
Highlights:
1.EFFICIENT DC MOTOR- The electric motor with 100% copper core has low noise and excellent speed regulating performance. The small-sized permanent magnet DC motor with an output power of 3/4 HP is compact and energy-saving. Dynamic balanced armature for smooth operation.
2.STEEL HOUSING- The shell of the permanent magnet DC generator is made of steel. The reliable metal material and high-quality oriented magnets can well protect the internal circuit from thermal overload. Smooth appearance is convenient to clean and use.
3.HIGH-SPEED COOLING FAN- Big fan at one end cools the high-speed DC motor in hours' running even in dusty or damp environments. It is able to reduce energy costs or overheads, reduce the running temperature, and increase winding lifetimes.
4.DETACHABLE BASE- High torque DC motor with 56C frame and a removable mounting base provide dual mounting versatility for easy mounting. The carbon brush is a consumable part, and the package includes one pair of spare carbon brushes that can be replaced in time.
5.MULTIPLE APPLICATION- DC motors have a wide range of applications. Double seal ball bearings with permanent grease filling for long service life. Our permanent magnet motor-generator is generally used in wire peelers, baler, paper cutter, and other mechanical equipment and automated control systems.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.EFFICIENT DC MOTOR- The electric motor with 100% copper core has low noise and excellent speed regulating performance. The small-sized permanent magnet DC motor with an output power of 3/4 HP is compact and energy-saving. Dynamic balanced armature for smooth operation.
2.STEEL HOUSING- The shell of the permanent magnet DC generator is made of steel. The reliable metal material and high-quality oriented magnets can well protect the internal circuit from thermal overload. Smooth appearance is convenient to clean and use.
3.HIGH-SPEED COOLING FAN- Big fan at one end cools the high-speed DC motor in hours' running even in dusty or damp environments. It is able to reduce energy costs or overheads, reduce the running temperature, and increase winding lifetimes.
4.DETACHABLE BASE- High torque DC motor with 56C frame and a removable mounting base provide dual mounting versatility for easy mounting. The carbon brush is a consumable part, and the package includes one pair of spare carbon brushes that can be replaced in time.
5.MULTIPLE APPLICATION- DC motors have a wide range of applications. Double seal ball bearings with permanent grease filling for long service life. Our permanent magnet motor-generator is generally used in wire peelers, baler, paper cutter, and other mechanical equipment and automated control systems.
Details:

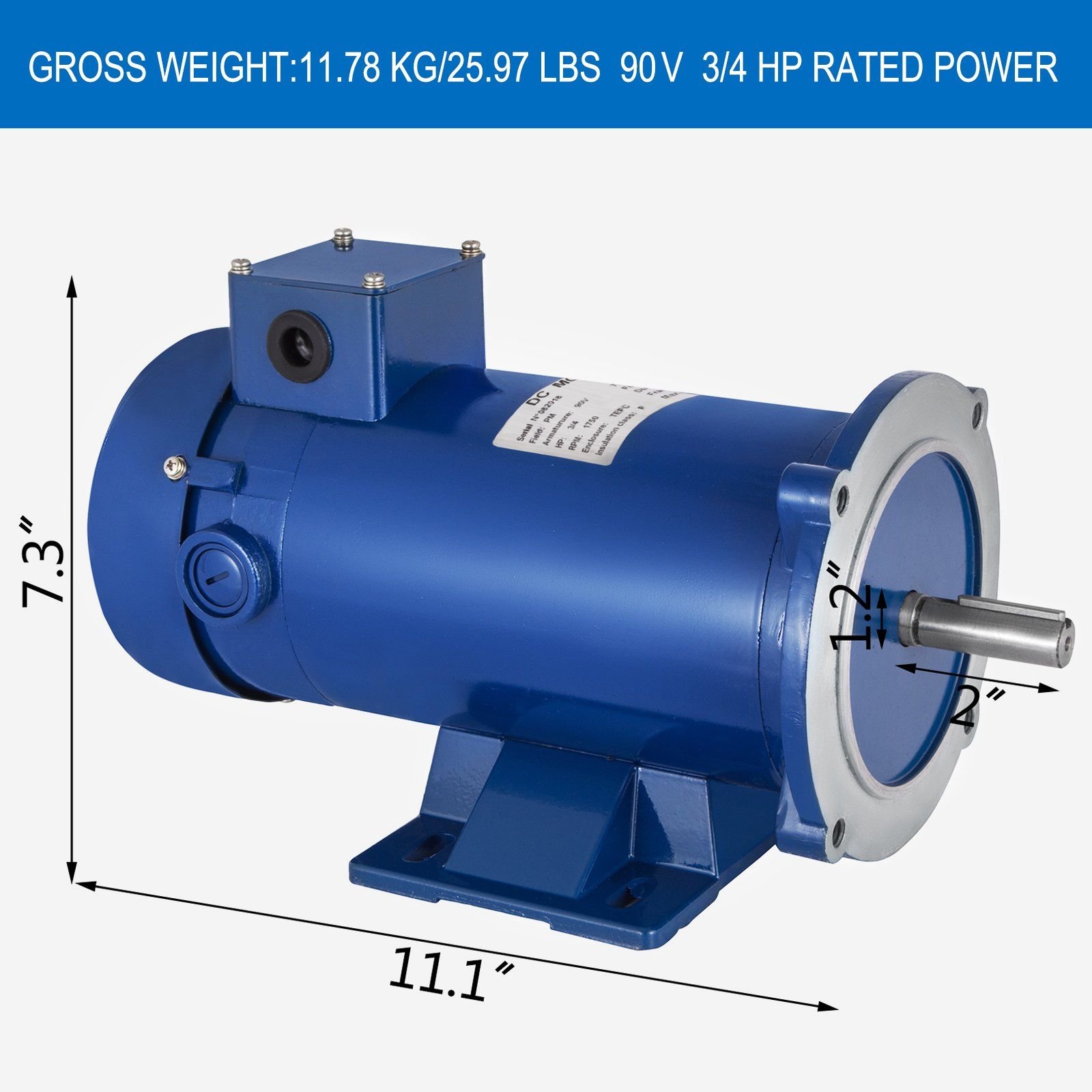

3/4HP 90V 56C 1750RPM Permanent Magnet DC Motor
The listing is about the 90V 3/4HP permanent magnet DC motor features TEFC system. This 56C frame and 1750 RPM rated speed DC motor is able to work more efficiently with a removable base, durable and stylish blue casing. This 3/4HP DC motor is generally used for equipment such as wire peeler, baler, paper cutter, etc.
- Efficient DC Motor
- Steel Housing
- High-Speed Cooling Fan
- Detachable Base
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

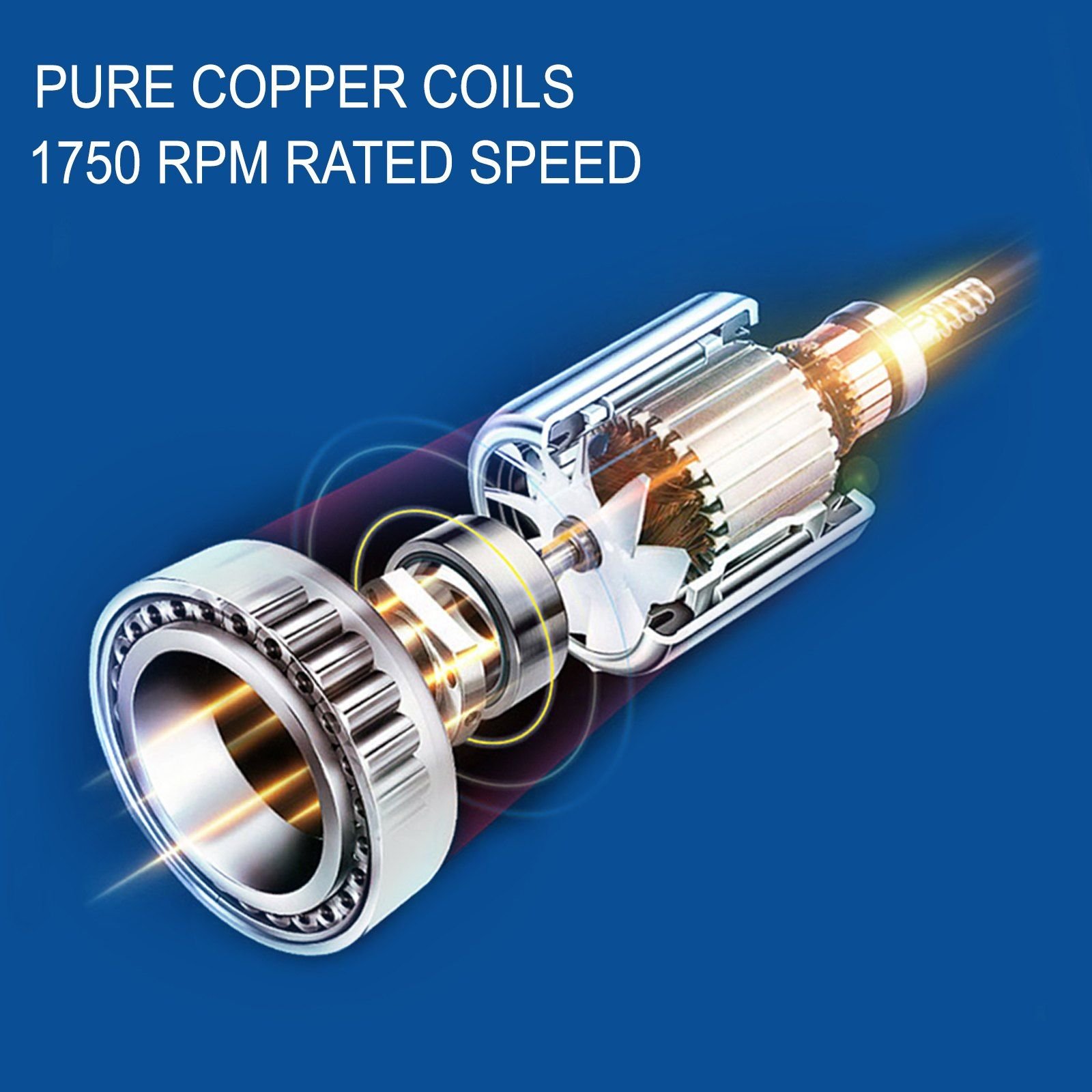

Pure Copper Core
The DC motor features 100% pure copper core for high conductivity and high-temperature resistance. 1750 RPM rated speed, and 1900 RPM no-load speed is stable and highly efficient.
Powerful DC Motor
The electric DC motor has 90V voltage, 3/4 HP output power for operating smoothly, and saving energy in a long time. At the same time, it is lightweight and small-sized to move effortlessly.
Sturdy & Durable Construction
The electric motor-generator uses a robust metal to construct the shell, which is rust-resistant, corrosion-resistant, and wear-resistant—thus providing high strength and hardness.
Fully Enclosed Fan
The built-in fan cooling system provides better heat dissipation to prevent overheating. There is a mesh design that can prevent foreign matter from being involved in the motor.
Easy to Install
Our permanent magnet DC motor has a removable mounting base and multiple mounting holes for easier mounting, dismounting, and removing.
Various Application
The permanent magnet generator is suitable for light and chemical industry, extrusion machinery. You can use it to achieve food processing function, wire drawing, printing, and packaging.
Specifications
- Rated Voltage: 90 V
- Rated Current: 7.6 A
- Rated Power: 3/4 HP
- Rated Speed: 1750 RPM
- No-load Speed: 1900 RPM
- Rated Torque: 3.07 N.m
- Enclosure: TEFC
- Frame: 56C
- Form Factor: 1.3
Package Content
- 1 x 3/4HP DC Motor
- 2 x Carbon Brush
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3/4HP 90V 56C 1750RPM Permanent Magnet DC Motor
The listing is about the 90V 3/4HP permanent magnet DC motor features TEFC system. This 56C frame and 1750 RPM rated speed DC motor is able to work more efficiently with a removable base, durable and stylish blue casing. This 3/4HP DC motor is generally used for equipment such as wire peeler, baler, paper cutter, etc.
- Efficient DC Motor
- Steel Housing
- High-Speed Cooling Fan
- Detachable Base
Pure Copper Core
The DC motor features 100% pure copper core for high conductivity and high-temperature resistance. 1750 RPM rated speed, and 1900 RPM no-load speed is stable and highly efficient.
Powerful DC Motor
The electric DC motor has 90V voltage, 3/4 HP output power for operating smoothly, and saving energy in a long time. At the same time, it is lightweight and small-sized to move effortlessly.
Sturdy & Durable Construction
The electric motor-generator uses a robust metal to construct the shell, which is rust-resistant, corrosion-resistant, and wear-resistant—thus providing high strength and hardness.
Fully Enclosed Fan
The built-in fan cooling system provides better heat dissipation to prevent overheating. There is a mesh design that can prevent foreign matter from being involved in the motor.
Easy to Install
Our permanent magnet DC motor has a removable mounting base and multiple mounting holes for easier mounting, dismounting, and removing.
Various Application
The permanent magnet generator is suitable for light and chemical industry, extrusion machinery. You can use it to achieve food processing function, wire drawing, printing, and packaging.
Package Content
- 1 x 3/4HP DC Motor
- 2 x Carbon Brush
Specifications
- Rated Voltage: 90 V
- Rated Current: 7.6 A
- Rated Power: 3/4 HP
- Rated Speed: 1750 RPM
- No-load Speed: 1900 RPM
- Rated Torque: 3.07 N.m
- Enclosure: TEFC
- Frame: 56C
- Form Factor: 1.3
